Android 7 Inch Car DVD Player for Mercedes-Benz GL Class X164(Touchscreen,GPS,TV,Ipod, 3G,Wifi)

Android 7 Inch Car DVD Player for Mercedes-Benz GL Class X164(Touchscreen,GPS,TV,Ipod, 3G,Wifi)

Email to a Friend

Be the first to review this product

Model:9305

US$
AUD GBP CAD EUR HKD RUB CHF USD

950.00

Save
US$285.00

30%Off |
remaining

Options

Built-in Digital TV (DVB-T / ATSC-MH / I-SDB-T) +US$45.00
2GB SD card and map +US$10.00
Special Rearview Camera for Mercedes-Benz +US$40.00

Qty:

-OR-

(0)

Processing Time: 1 - 5 business days

Express shipping Time: 3 - 7 business days

Details| Reviews| Q & A

All car dvd players you see here are easy to install.

BUYING GUIDE	VIDEO	INSTALLATION
USER MANUAL	FAQS	RETURN POLICY

Android 4.0 Car DVD player GPS Navigation System for Mercedes-Benz GL Class X164(2005 2006 2007 2008 2009 2010 2011 2012) (GL300 GL350 GL420 GL450 GL500)
GPS	yes	Analogue TV	yes	Radio	yes	Ipod	yes	Digital TV	opt.	Wi-Fi	yes
DVD	yes	USB/SD	yes	Bluetooth	yes	Rearview	yes	Camera	opt.	3G Net	yes

After Viewing This Item People ultimately bought

44
US$420.00
US$280.00
US$290.00
US$190.00
US$320.00
75
US$792.00
40
US$430.00

Details

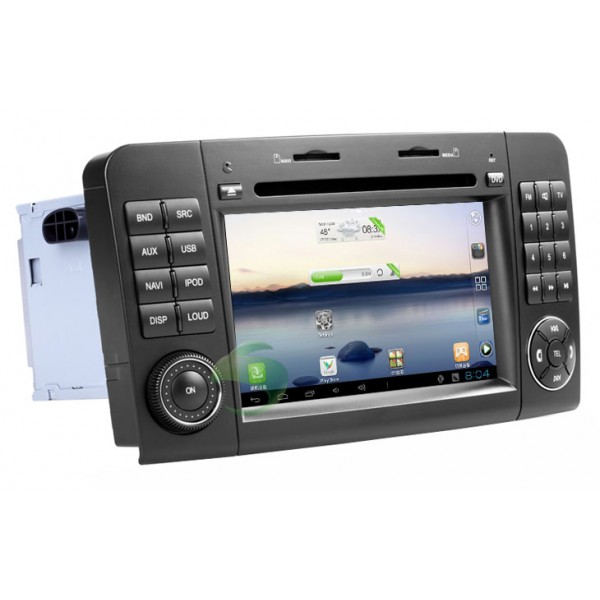

Android 4.0 Car DVD player GPS Navigation System for Mercedes-Benz GL Class X164(2005-2012) (GL300 GL350 GL420 GL450 GL500)

Android Mercedes-Benz GL Class X164 car dvd gps

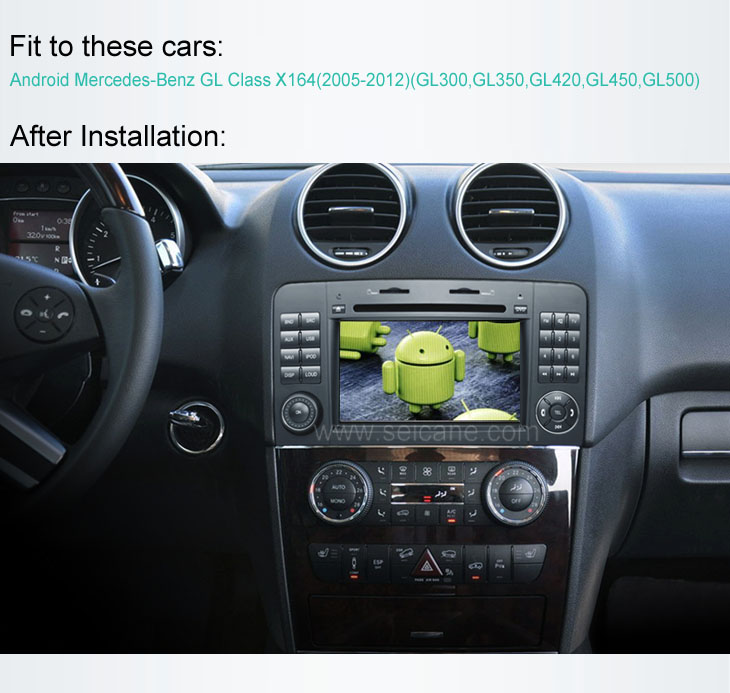

Android Mercedes-Benz GL Class X164 car dvd after installation

Mercedes-Benz GL Class X164 original car cd dvd

Android Mercedes-Benz GL Class X164 car dvd player with gps usb sd

car dvd player with radio bluetooth music

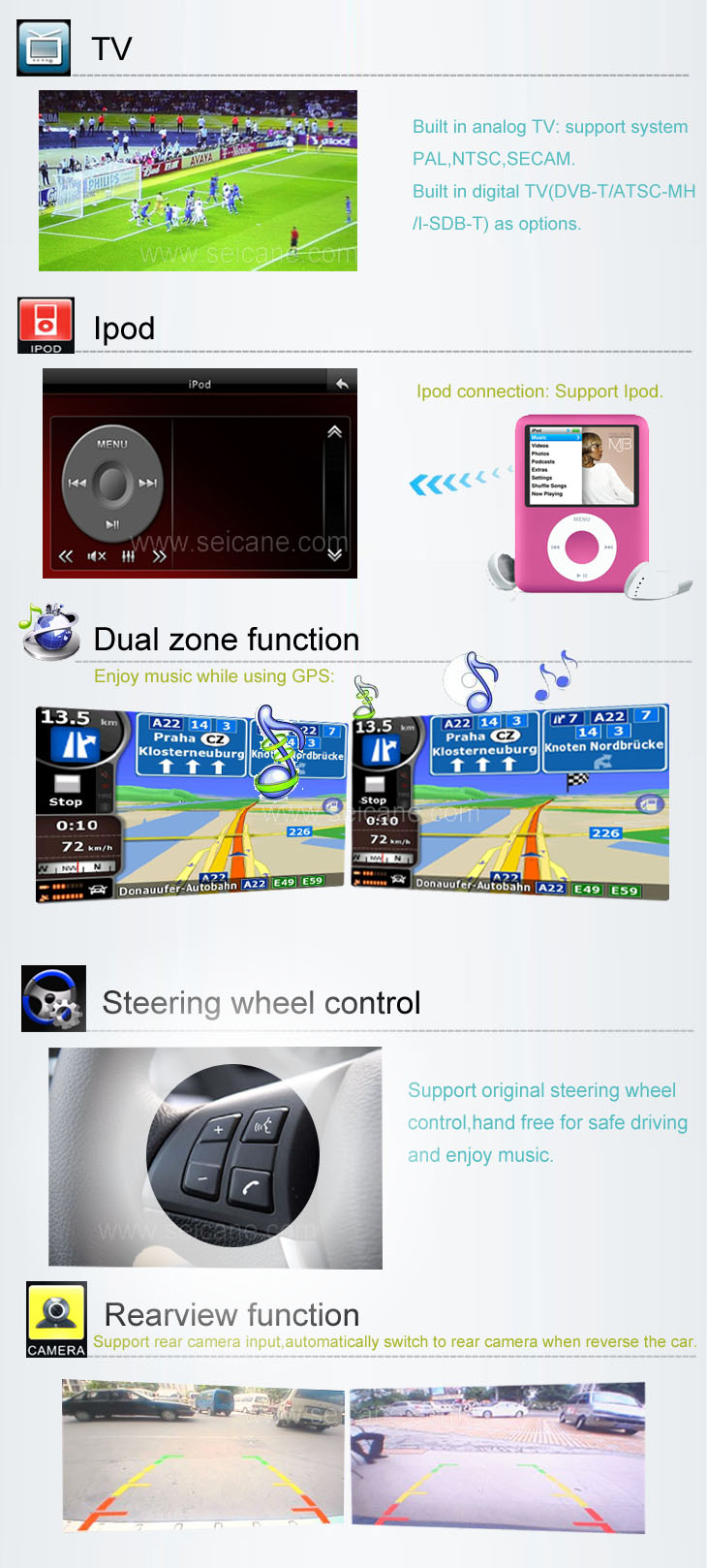

dvd player with tv Ipod steering wheel rearview camera

car dvd player gps navigation radio tv

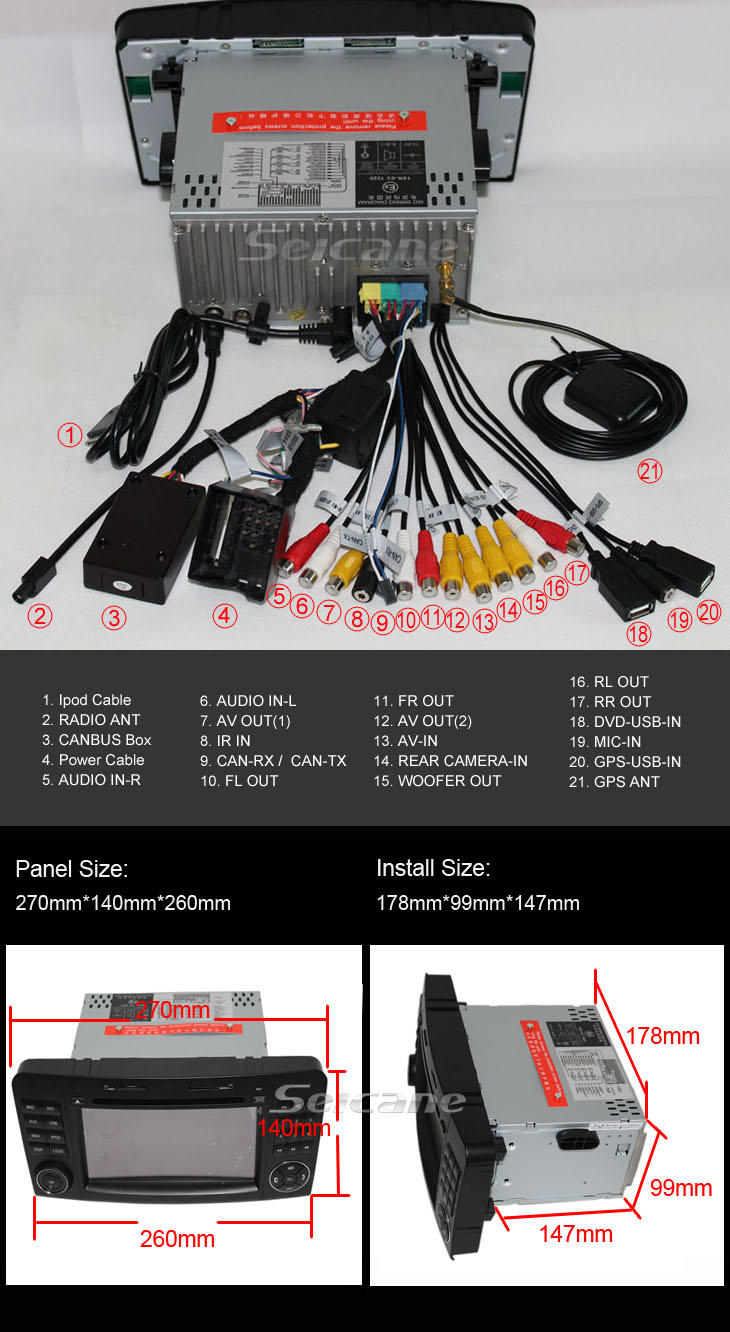

Mercedes-Benz GL Class X164 GL300 GL350 GL420 GL450 GL500 dvd player size and cable connections

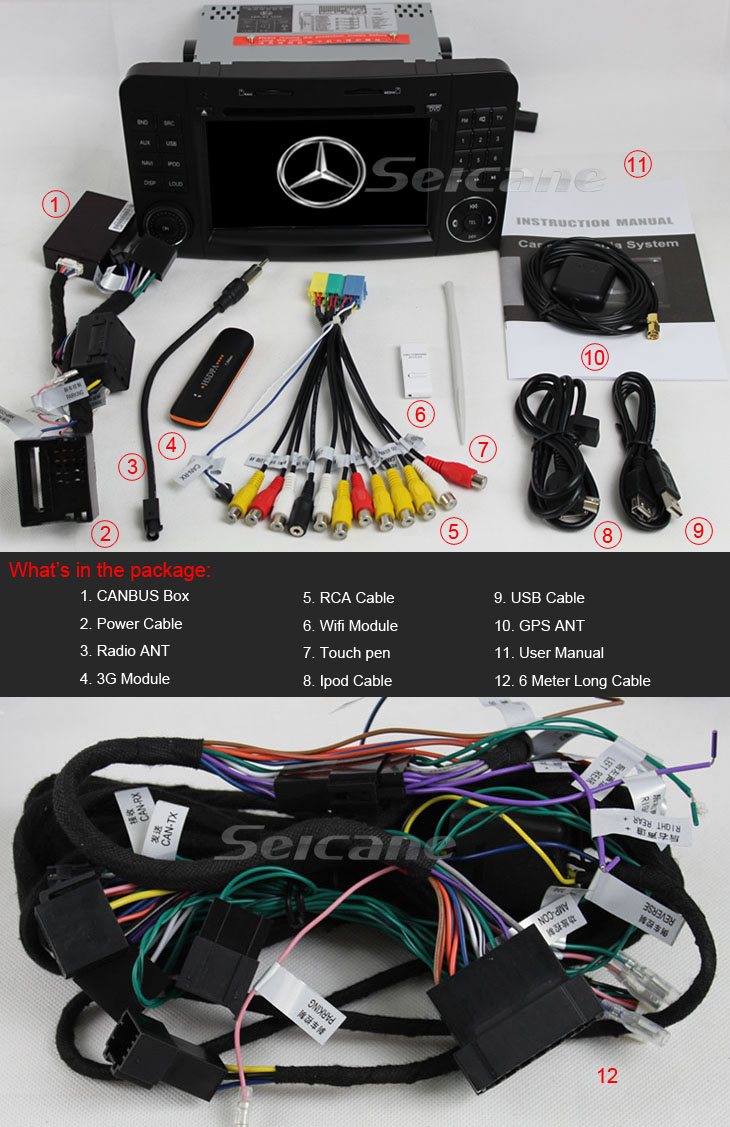

Mercedes-Benz GL Class X164 GL300 GL350 GL420 GL450 GL500 dvd player accessories

Combined with the original car perfectly
No need to cut your original power cable.Simple installation
Keep your steering wheel control works as original
Keep original Style.Upgrade Perfectly
Guidance with the GPS navigation.You can go anywhere

Key Features:

7 inch 16:9 800*480 digital High Definition TFT LCD touch screen
Use Super Cortex A10 1.0GHz High Speed Dual-Core processor
Containing An Internal Memory up to 512MB and DDR3 RAM and 4GB Nand-Flash Rom
Android 4.0 operation system.More Convenient.More Stable
Support Wireless Wifi Net work Connection and 3G Internet Function.
Built-in GPS navigation system
Disc Play. Compatible with DIVX/DVD/DVD-RS/DVD+RS/DVD-RW/VCD/CD-R/CD-RW/MP3/MP5/WMA/AVI etc
Radio function. High sensitive FM/AM tuner 30 stations restorable. Support RDS
Build in Bluetooth for hand free(Coming Tel No. display function & Call out directly by touch screen)
Build in Bluetooth music.Play music in your phone via bluetooth.Support A2DP
Built in analog TV. Built in Digital TV(DVB-T/ATSC-MH/I-SDB-T) as options
Support AUX In
Support Rearview Camera. Automatically switch to rear camera and display rear image in the screen when reverse the car
Video output/input: two video output and two video input(one video input for rearview system)
IPOD Support. Charging and playing Ipod in the meanwhile
USB and SD port. Support MP3/MP4/JPEG/WMA/DVD/CD/VCD/DIVX/MPEG etc
Support steering wheel control
Build in 4x45W amplifier
4-CH RCA output
Dual zone function support.Navigating and Enjoying music at the same time
With excellent mechanical anti-vibration and electronic shock protection
Beautiful picture OSD menu
Background picture changeable.Function icons removeable.Contrast and Brightness adjustment
English German French Spanish Hungarian Czech Danish Swedish Portuguese Italian Finland Roumania Greek Russian Poland Dutch Norwegian Nederlands Switzerland Korean Turkey etc languages are available

Critical parameter
Working voltage	DC 10-14.6V
Working current	MAX 10A
Standby current	<=50mA
POWER OFF current	<1mA
Working Temperature	-20°-55°
Storage Temperature	-30°-70°

Hardware parameters
Processor	ARM11 Cortex-A10
Main frequency	1.0GHz
RAM	512M
FLASH	4GB
USB	USB2.0 OTG

System parameters
Operation system	Android 4.0.4
Support map	Tomtom, IGO, Route 66,Papago etc
Video system	automatic PAL/NTSC

Display
Display size	16:9
Screen Size	7 inch
Touch Screen	yes
Screen Resolution	800*480 Pixels

GPS Navigation System
Chipset	SIRF STAR 3
Frequency	1.575GHz
Channel number	20channels
Hot start time	average 2s
Warm start time	average 31s
Cold start time	average 32s
Display output	CVBS+S-VIDEO output
Audio output	Stereo CD Quality
Support audio type	MP3/PCM/WMA
Support video type	ASF/AVI/WMV/DIVX
Tracking sense degree	-159dbm
Position accuracy	10m, 2D RMS, WAAS enable
Velocity	0.1m/s
Data renewal rate	1Hz
Re-catching time	average 0.1s
The biggest fixed height	18000m
The biggest velocity	515m/s
Power specification	DV 12V, current<500mA
Consumption	4.5W(12V/360mA), normal 3W(12V/250mA)

Amplifier parameters
Testing voltage	13.8V
Maximum power output	4×45W
Speaker impedance	4Ω (4-8Ω acceptable)
Subwoofer Output	yes

DVD parameters
Video output range	1+10.2Vp-p(75Ω)
Disc spec	diameter 12cm disc
Buffer time	CD/MP3 10s/16s
Compatible disc	DIVX/DVD/DVD-RS/DVD+RS/DVD-RW/VCD/CD-R/CD-RW/MP3/MP5/WMA/AVI

Audio parameters
Channel Separation	60dB
Distortion	0.5%
Frequency response	20Hz-20KHz (±3dB)
S/N Ration	70dB
Bass Treble Effect	Low 100Hz±10dB High 10KHz±10dB
EQ Type	Jazz/Rock/Pop/Nor/Dance/Classic/Customized

Radio parameters
FM/AM frequency	FM: 87.5MHz-108MHZ(Worldwide) AM: 522KHz-1620KHz(Worldwide)
Radio area	Europe,Japan,USA,Russia,China,Latin America
Storage quantity	FM radio: 18channels AM radio: 12channels
Search method	automatic/manual

Optional function
Digital TV (DVB-T/ATSC-MH/I-SDB-T)	yes
2GB SD Card and map	yes
Camera	yes

Accessories
English User’s Manual	yes
RCA Cable	yes
iPod Cable	yes
USB Cable	yes
GPS Antenna	yes
touch pen	yes
Canbus Box	yes
3G module	yes
Wifi module	yes

Packing and Shipping
Carton size	393128cm
Unit Packing(G.W.)	2.93kg
Export carton	4.05kg
Warranty	1 year

Write Your Own Review

Tell us what you think about Android 7 Inch Car DVD Player for Mercedes-Benz GL Class X164(Touchscreen,GPS,TV,Ipod, 3G,Wifi).

Write A Review

Hide all answers

Tab 1 Body

Q: 2007 Mercedes GL450 Hello,This is A 2007 Mercedes GL450, please advise.Thank You ByRays Aug 13, 2014

A:
Hello, we have confirmed that this unit fits your car.You can place order directly on our website. Thank you.

By Seicane
Apr 1, 2025
Was this answer helpful?

(78) | (66)

Q: 07 GL450 Attached you will find pictures of my 07 GL450, if the item fits my car? ByDillon Aug 11, 2014

A:
Hello, we have confirmed that this unit fits your car.

By Seicane
Apr 1, 2025
Was this answer helpful?

(76) | (79)

Q: IPOD Can this unit support IPOD? ByRoss Aug 8, 2014

A:
This unit can support ipod play.We provided one ipod cable in the package to you,please use this ipod cable.

By Seicane
Apr 1, 2025
Was this answer helpful?

(81) | (69)

Q: Where should I install the reversing camera? Where should I install the reversing camera? Byalexandre Aug 8, 2014

A:
Our camera should be installed to the place of your original car's license plate light.Please take the license plate light off,then connect it well and move it aside.Then install our camera to the place of your original car's license plate light.

By Seicane
Apr 1, 2025
Was this answer helpful?

(74) | (77)

Q: Will that be available using the av out to rear screens? To clarify, when viewing/using the intenet (for videos or anything else) will that be available using the av out to rear screens? ByMichael Aug 6, 2014

A:
Hello,Yes, you can using the internet,and at the same time using the av out to rear screens.

By Seicane
Apr 1, 2025
Was this answer helpful?

(89) | (78)

Ask a new question

Tab 2 Body

Ask a new question

Tab 3 Body

Q: 2007 Mercedes GL450 Hello,This is A 2007 Mercedes GL450, please advise.Thank You ByRays Aug 13, 2014

A:
Hello, we have confirmed that this unit fits your car.You can place order directly on our website. Thank you.

By Seicane
Apr 1, 2025
Was this answer helpful?

(78) | (66)

Q: 07 GL450 Attached you will find pictures of my 07 GL450, if the item fits my car? ByDillon Aug 11, 2014

A:
Hello, we have confirmed that this unit fits your car.

By Seicane
Apr 1, 2025
Was this answer helpful?

(76) | (79)

Q: IPOD Can this unit support IPOD? ByRoss Aug 8, 2014

A:
This unit can support ipod play.We provided one ipod cable in the package to you,please use this ipod cable.

By Seicane
Apr 1, 2025
Was this answer helpful?

(81) | (69)

Q: Where should I install the reversing camera? Where should I install the reversing camera? Byalexandre Aug 8, 2014

A:
Our camera should be installed to the place of your original car's license plate light.Please take the license plate light off,then connect it well and move it aside.Then install our camera to the place of your original car's license plate light.

By Seicane
Apr 1, 2025
Was this answer helpful?

(74) | (77)

A:
Hello,Yes, you can using the internet,and at the same time using the av out to rear screens.

By Seicane
Apr 1, 2025
Was this answer helpful?

(89) | (78)
